MDO Nip Roller with 45# Steel and Q235 Shell for Biaxially Oriented Plastics Film Line at 650m/min

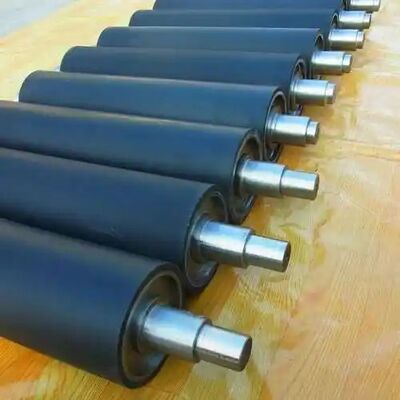

Imagem Grande : MDO Nip Roller with 45# Steel and Q235 Shell for Biaxially Oriented Plastics Film Line at 650m/min

Detalhes do produto:

Lugar de origem:	China
Marca:	HUATAO
Certificação:	ISO
Número do modelo:	MDO rolos de pinça

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 unidade
Preço:	2000USD/pc-5000USD/pc
Detalhes da embalagem:	Estojos de madeira
Tempo de entrega:	1-2 meses
Termos de pagamento:	L/C,T/T
Habilidade da fonte:	300000 Pcs/ano

Contato

Descrição de produto detalhada

Nome do produto:	Linha de filme de plástico bi-axialmente orientada MDO Nip Roller de borracha de silício revestida	Palavras-chave:	MDO Nip Roller, Rubber MDO Nip Roller, Plastic Film Line MDO Nip Roller, MDO Coated Roller
Aplicativo:	Para a linha de produção de películas de plástico orientadas biaxialmente	Instale a posição:	Zona de alongamento da secção MDO
Material da casca:	45# Aço, Q235	Material de borracha:	Gel de sílica, HNBR, borracha sintética
Velocidade de equilíbrio:	650m/min	Tipo:	Rolo de borracha
Destacar:	Rolante MDO para filamentos , 45# rolos industriais de aço , Q235 rolos de pinça de concha

Biaxially Oriented Plastics Film Line MDO Nip Roller Silicon Rubber Coated Rollers

Product Description

Biaxially Oriented Plastics Film Line MDO Nip Roller Silicon Rubber Coated

MDO Nip Roller Basis Information

Biaxially Oriented Plastics Film (BOPF) is a general term for plastic films made by biaxial stretching (or biaxial orientation). It is produced through physical, chemical, and mechanical special molding processes where thick film or flat film is stretched both longitudinally and transversely at a temperature between the melting point and glass transition temperature, followed by heat setting treatment.

The MDO stretching process in biaxially oriented plastic film production lines (BOPP, BOPET, etc.) is crucial as it directly affects the film's physical properties and final product quality.

Product Name	MDO Nip Roller
Shell Material	45# Steel / Q235
Rubber Material	Silicon Rubber
Rubber Hardness	65-80 Shore A

MDO Nip Roller Features

Surface Quality: Flat, smooth, centered, and round surface ensures continuous sealing
Durometer: Soft covering conforms well to film, especially folded edges or gusseted films
Trapping Air: Designed to trap air inside the film bubble in conventional cooling systems
Roller Repair: Worn or damaged surfaces can be repaired by regrinding or recovering

MDO Nip Roller Benefits

Consistent Speed: Ensures uniform film quality and production efficiency
Bubble Stability: Maintains stability during film production process
Film Quality: Prevents defects like creasing or damage from crushed folds
Uniform Pressure: Applies even pressure across film for consistent results
Defect Detection: Compatible with nip impression films for issue diagnosis

About Huatao Group

Founded in 2008, Huatao Group is a professional supplier with over 15 years of experience in manufacturing rollers for various industries including paper, rubber & plastic, and nonwoven fabric.

Our product range includes:

Paper Industry: Forming rollers, vacuum couch rollers, press rollers, dryer cylinders, and more
Plastic & Rubber Industry: Chill rollers, MDO rollers, corona treatment rollers, and winding cores
Nonwoven Fabric Industry: Cylinder rollers, guide rollers, embossing rollers, and cooling rollers

With products exported to over 96 countries, we are committed to innovation, reliability, and customer satisfaction. We understand unique customer requirements and match them with superior quality solutions.

Our goal is to ensure customers purchase and use Huatao products with complete confidence, backed by ongoing service support.
