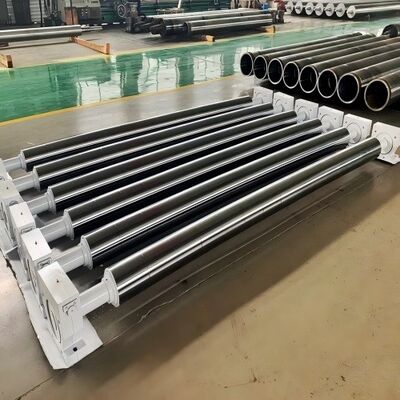

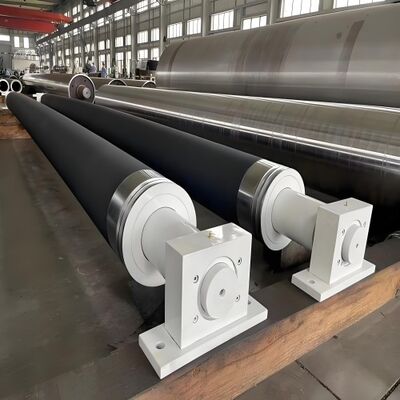

Rubber Coated Expander Roll Banana Roll with 13000mm Maximum Face Length and 3000m/min Maximum Speed for Wrinkle Removing

The expander roll, also known as Spreader Roll, Bowed Roll, Curve Bar Expander, Banana Roll, Camber Roll, or Wrinkle Removing Roll, is designed to eliminate wrinkles in various industrial applications. Most expander rolls are driven by web tension without requiring additional power.

Widely used in textile processing machines, plastic converting machines, paper industries, manufacturing, processing, printing, laminating, coating, batching, winding, and re-winding operations.

The key difference between a standard straight roller and an expander roller lies in the axis curvature. The arc-shaped axis creates tension across the material width, preventing wrinkles during processing. As material contacts the curved roller surface, edges move outward, creating uniform tension perpendicular to the roller surface.

Hard Chrome: Delivers high torque capacity, excellent sealing, free rotation, and leak-proof operation.

Rubber Cover: Provides superior abrasion resistance and extended service life. Features unique end structures to prevent cover expansion/contraction.

• Bearing ring internal structure for durability
• Low swing torque design with bearings installed in rubber sleeves
• Smooth rubber surface that won't damage materials
• Adjustable roller face angle for precise control
• High temperature resistance, abrasion proof, anti-adhesive properties
• Maximum operating speed: 2000m/min
• Multiple surface treatments available (sand-blasting, chrome plating, grooving)
• Compatible with cutter machines, re-reeling machines, coating machines, and paper machines
