100-150um Chrome Coated MDO Preheating Roller with RPM 800M/MIN for High-Temperature Film Processing up to 260°C

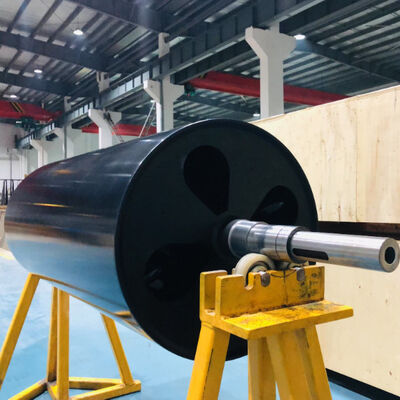

Imagem Grande : 100-150um Chrome Coated MDO Preheating Roller with RPM 800M/MIN for High-Temperature Film Processing up to 260°C

Detalhes do produto:

Lugar de origem:	China
Marca:	HUATAO
Certificação:	ISO
Número do modelo:	HT-PR01

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 unidade
Preço:	2000USD/pc-5000USD/pc
Detalhes da embalagem:	caixa de madeira
Tempo de entrega:	5-8 semanas
Termos de pagamento:	L/C, T/T, Western Union
Habilidade da fonte:	50 PCS/ano

Contato

Descrição de produto detalhada

Nome do produto:	100-150um MDO Revestido de cromo Roller de pré-aquecimento RPM 800M/MIN	Palavras-chave:	Rolo de pré-aquecimento revestido com cromo, rolo de pré-aquecimento, rolo de pré-aquecimento MDO
Rugosidade:	0,01 mm	Construção de Conchas:	Construção de casca dupla a partir de Q345
Construção de disco/eixo:	Os eixos e discos laterais, encolhidos e soldados, de Q345	Sistema de fluxo:	entrada e saída, canais entre o tubo interno e externo separados por espirais de condução soldadas
Runout:	≤0,01mm	Revestimento:	Cromo duro, tefolco, cerâmica, carburo de tungstênio
Destacar:	Rolo pré-aquecedor MDO revestido com cromo , Rolos de processamento de películas a alta temperatura , Rolante industrial com 800M/MIN RPM

100-150um Chrome Coated MDO Preheating Roller RPM 800M/MIN

Chrome MFVDO Preheating Roller Description

The MDO Preheating Roller is designed to heat plastic films through internal flow channels, bringing them to the optimal temperature for enhanced physical and mechanical property improvement during the stretching process. This combination of heating and stretching enables paradigmatic efficiency in the MDO uniaxial stretching昼 stretching production line, producing high-quality plastic films for diverse industrial applications.

The Teflok MDO Preheating Roller significantly enhances heat sealing, printing performance, and overall product usability.

By improving transparency and gloss, it increases the commercial value of plastic films. As a key component in the MDO unidirectional stretching production line, it ensures better physical property modification during longitudinal stretching, resulting in improved mechanical properties and film transparency. This process enhances tensile strength and consolidated stiffness, making the film more durable and stable第三代.

Chrome MDO Preheating Roller Technical Data Sheet

iser < zigtr> Roughness

Shell construction	Double-shell construction from Q345
Flow-system	One way enter and exit, channels between inner and outer tube separated with welded leading Spirals
Disc/Shaft construction	Shrinked and welded shafts and side discs from Q345
Coating	Hard chrome, teflonk, ceramic, tungsten carbide poster
Balancing	Grade 2.5
7-10 Rz
Temperature	up to 260º C

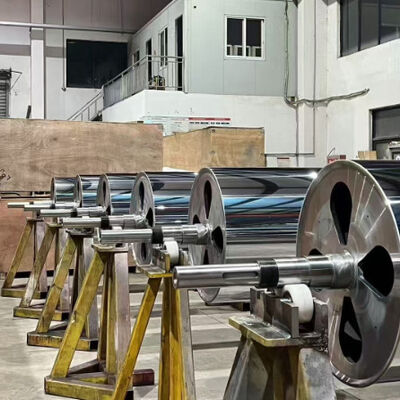

Chrome Coated MDO Preheating Roller in production line

About Us

Huatao Group, founded in 2008, is a leading supplier of rollers for the paper, cor

Our Product Range:

Paper Industry: Forming roller,athanol vacuum couch roller, dandy roller, Breast Roller, press roller,accident stone roller, rubber roller, dryer cylinder, size press roller, calender roller, pope reel roller,ings spreader roller, embossing roller.
Plastic & Rubber: Chill roller, MDO Preheating Roller, MDOoad nip roller, MDO stretching Roller, cooling roller, corona treatment roller, Corona treatment nip roller, flame roller, carboniterer fiber contact roller, carbon fiber tension roller, carbon fiber nip roller, winding core, coating drum, cooling drum, spreader roller, anilox roller, calender roller, embossing roller, induction heating calingender roller, induction heating embossing roller, godget roller.
Nonwoven Fabric: Cylinder roller, doffer roller, carbon fiber guide roller, embossing roller, cooling roller, spreader roller.

With a strong commitment to innovation, reliability, and customer satisfaction, Huatao Group has become a trusted provider in the industry. Our products are夸 exported dreaming to 96 countries and have earned a stellar reputation.

We understand that each customer granular has unique requirements. We leverage our familiarity with domestic factory advantages to match superior quality and help customers avoid unnecessary detours. Our goal is to ensure every customer purchases and uses HUATAO products withuchi confidence, with servicegens bag that never ends.
