HUATAO WS 85 Polyurethane Screen 305×305mm Wear-Resistant with Rail Seat Installation for Iron Ore
1)Description of HUATAO WS 85 Polyurethane Screen 305×305mm Wear-Resistant with Rail Seat Installation for Iron Ore
HUATAO’s Replacement WS 85 Modular Screen uses open-cast polyurethane with high-temperature curing, enhancing molecular bonding for exceptional durability. It surpasses rubber and metal screens in lifespan, suitable for coal mines, tailings, and slime dehydration.
Acid and alkali resistant, it handles corrosive conditions in concentrate processing and carbon slurry separation. Precise seams (0.075mm to 0.8mm) enable accurate grading, while the low friction surface resists sticking, reducing clogging.
Elastic properties ensure high throughput and thorough dewatering, aiding tailings volume reduction. Custom sizes (305×305mm, 600×600mm) and installation options (nails, bolts, rail seats) allow seamless integration. The double-hardness MDI design reduces blockages, improving efficiency and extending service life, making it a top-performing choice.
2) Key Features & Benefits of HUATAO WS 85 Polyurethane Screen 305×305mm Wear-Resistant with Rail Seat Installation for Iron Ore
| ✅ Durability: |
8–10x lifespan vs. steel, anti-abrasion, tear-resistant. |
| ✅ Efficiency: |
Self-cleaning, anti-clogging, 30% energy saving. |
| ✅ Customization: |
Aperture sizes (0.1–170mm), shapes, modular compatibility. |
| ✅ Certified: |
Flame-retardant, non-toxic, ISO-compliant. |
3) Specification of HUATAO WS 85 Polyurethane Screen 305×305mm Wear-Resistant with Rail Seat Installation for Iron Ore
| Material |
steel frame and polyurethane surface |
| Feature |
WS85,Wear-resistant, efficient and easy to install |
| Thickness |
30mm, 40mm, 50mm |
| Opening size |
Slot Width 0.1mm – 2.5mm |
| Screen Width |
305mm, 500mm and 515mm, others can be designed. |
| Screen length |
305mm, 610mm, 650mm, 915mm, 1200mm and 1220mm, others can be designed. |
| Connection type |
WS85 |
| Application |
* Mining: Ideal for grading iron ore, copper, limestone, and granite.
* Coal Processing: Efficient dewatering and desliming in coal preparation plants.
* Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone.
* Recycling & Waste Management: Separation of construction debris and industrial waste. |

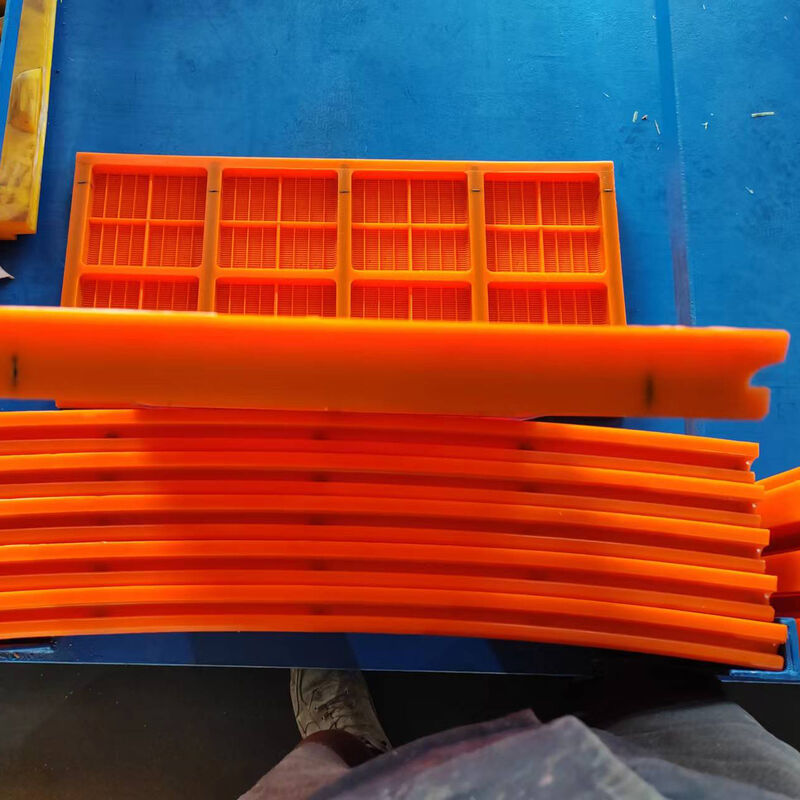

4) Images of Polyurethane Dewatering Screen Panel include:

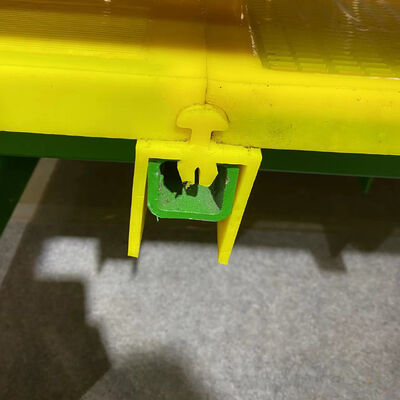

A close-up of the Polyurethane Dewatering Screen Panel Pin&Legs showing :
5) Working Processing of Polyurethane Dewatering Screen Panel
6). Packaging & Logistics: Wooden box package.
7) Application of Polyurethane Dewatering Screen Panel
