50*10mm Rubber Screen Panel used for SELM vibration screen Minearl Processing
1)Description of 50*10mm Rubber Screen Panel used for SELM vibration screen Minearl Processing
Featuring a multi-layered impact absorption system, these industrial sieve plates reduce blinding incidents by 45% through dynamic material flow optimization.
Precision-cut openings (standard 5-75mm, custom sizes available) ensure consistent grading accuracy in both arid conditions and slurry applications. Modular design supports rapid installation with optional clip-on, flanged, or threaded fastening solutions.
The vibration-dampening framework maintains structural integrity under continuous heavy-load operations, significantly lowering maintenance frequency.
2) Key Features & Benefits of 50*10mm Rubber Screen Panel used for SELM vibration screen Minearl Processing
Engineered with a heavy-duty internal frame, our rubber screen panels excel at absorbing shocks and delivering reliable support under rigorous conditions. Their wide selection of aperture configurations caters to diverse applications, performing optimally in both dry environments and high-humidity settings. The advanced design reduces pegging and material buildup, ensuring unobstructed screening processes. With customizable fastening systems and a full range of accessories, these panels provide flexible integration into existing equipment, enhancing productivity while minimizing maintenance demands.
3) Specification of 50*10mm Rubber Screen Panel used for SELM vibration screen Minearl Processing
| Feature |
Specification |
| Material |
High-wear rubber + steel frame |
| Type |
SELM Rubber Panel or customized |
| Thickness |
25-40mm (customizable) |
| Hole Size |
10-50mm (adjustable) |
| Size |
610*305*40mm, 305*305*40mm |
| Weight |
<15kg/m² (15mm thickness) |
| Applications |
Ore classification, coal washing, mineral processing |
Why Choose HUATAO?
HUATAO's engineering team customizes Rubber screens for specific material characteristics, with ISO 14001-certified production. Standard configurations ship in 25 days, with expedited options available. Our quality control exceeds industry standards, ensuring reliable performance in your processing plant.

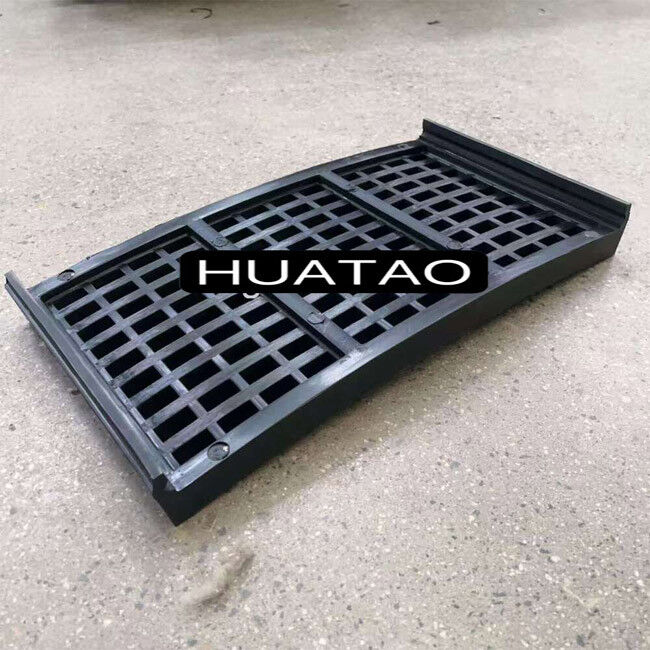

4) Images of Rubber Vibrating Screen Panel include:

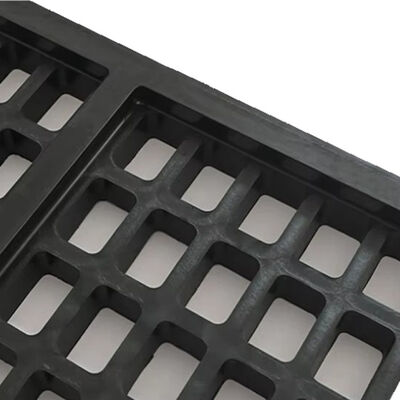

A close-up of the Rubber Vibrating Screen Panel showing :
5) Working Processing of Rubber Vibrating Screen Panel
6). Rubber Vibrating Screen Panel Packaging & Logistics: Wooden box package.
7) Application of Rubber Vibrating Screen Panel
