Polyurethane Declogging Rods for Vibrating Screens
Production Description:

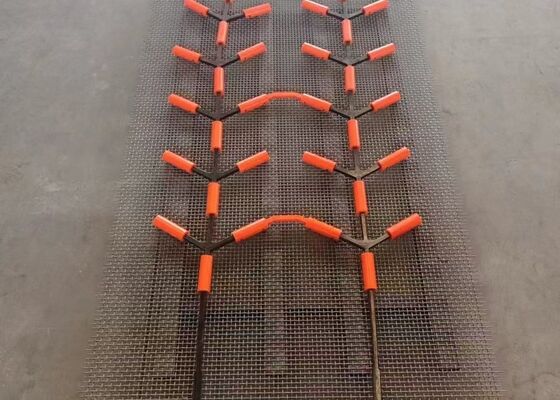

Polyurethane anti-blinding rods are designed to improve screening efficiency in vibrating screen systems exposed to sticky and wet materials. Installed beneath the screen media, these rods move continuously with machine vibration and repeatedly strike the screen deck to remove trapped particles. Their flexible polyurethane structure provides excellent rebound elasticity while resisting abrasion and impact damage. This self-cleaning action helps prevent pegging and blinding, ensuring stable material flow and improved throughput. The rods are widely used in mining, quarrying, coal preparation, and aggregate screening applications where damp or near-size materials often cause severe screen blockage.
Flexible Anti-Blinding Solution for Wet & Sticky Material Screening
Polyurethane declogging rods are flexible anti-blinding accessories designed to improve screening efficiency in vibrating screens. Installed beneath or between screen decks, these rods continuously bounce and flex with screen vibration to dislodge trapped particles and prevent mesh blinding.
They are widely used in mining, aggregate, coal preparation, recycling, sand processing, and wet screening applications where sticky, damp, or near-size materials tend to clog screen openings. Polyurethane declogging rods help maintain open screening area, improve material flow, and significantly reduce downtime caused by screen blockage.
Main Applications
Polyurethane declogging rods are suitable for various screening systems and anti-clogging screen decks:
- Mining vibrating screens
- Aggregate screening plants
- Coal preparation plants
- Sand and gravel screening
- Wet screening systems
- Recycling and demolition screening
- Self-cleaning screens
- Flip-flow screens
- Trommel screens
Especially effective for:
- Wet and sticky materials
- Clay and sludge screening
- Fine particle separation
- Near-size material classification
- High-moisture screening conditions
How Polyurethane Declogging Rods Work

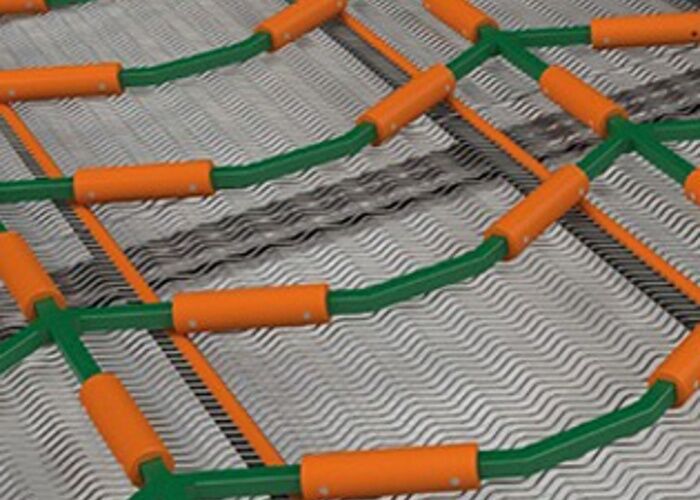

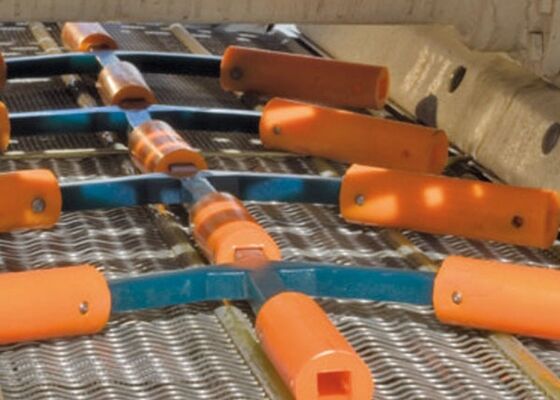

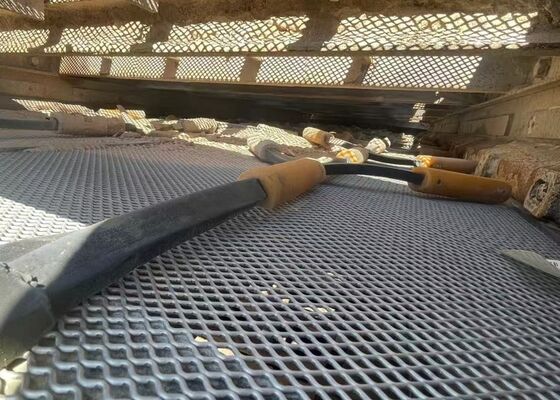

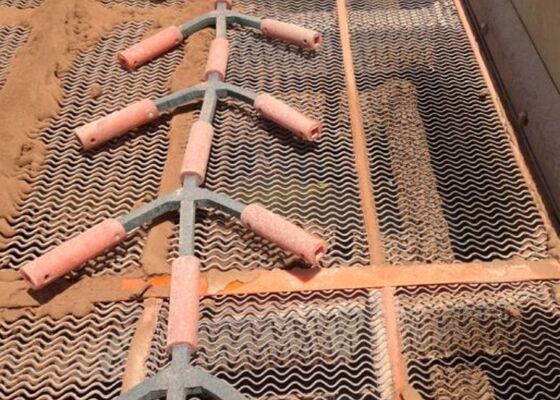

During operation, the vibrating screen movement causes the polyurethane rods to bounce continuously against the screen media. This repeated movement loosens particles trapped in the apertures and prevents blinding and pegging.
Compared with traditional cleaning balls or metal rods, polyurethane declogging rods provide:
- Better flexibility
- Stronger anti-blinding performance
- Lower screen damage risk
- More stable self-cleaning effect
The flexible polyurethane material absorbs impact while maintaining excellent rebound performance, ensuring continuous screen cleaning during operation.
Main Advantages
1. Excellent Anti-Blinding Performance
Continuously removes trapped particles and prevents screen clogging.
2. Flexible & High Rebound Design
The rods flex and bounce with vibration to improve self-cleaning efficiency.
3. Superior Wear Resistance
Polyurethane material offers outstanding abrasion resistance under harsh conditions.
4. Reduced Downtime
Minimizes manual cleaning and increases screen uptime.
5. Chemical & Corrosion Resistance
Suitable for wet, corrosive, and chemically aggressive environments.
6. Easy Installation
Can be quickly attached using hooks, clips, or pin systems without special tools.
7. Longer Service Life
Polyurethane rods typically last longer than rubber or traditional cleaning accessories.
8. Improved Screening Efficiency
Maintains open screening area and increases throughput capacity.

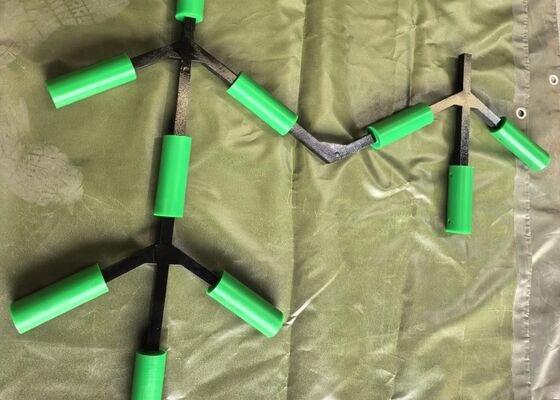

Available Shapes & Designs
We supply multiple rod configurations according to screen structure and material conditions:
- Round polyurethane rods
- Flat polyurethane rods
- Oval anti-blinding rods
- Flexible cleaning rods
- Pin-connected rod assemblies
- Custom anti-clogging rod systems
Custom dimensions and hardness available upon request.
Technical Specifications
| Parameter |
Range |
| Material |
Polyurethane (PU) |
| Hardness |
80–95 Shore A |
| Rod Diameter |
10–50 mm |
| Length |
Customized |
| Color |
Red Yellow Blue Orange Black |
| Temperature Resistance |
-30°C to +80°C |
| Installation Type |
Clip Hook Pin Connection |
| Application |
Wet Sticky Abrasive Materials |
Recommended Hardness Selection
| Screening Condition |
Recommended Hardness |
| Wet Sticky Material |
80±2 Shore A |
| Fine Material Screening |
85±2 Shore A |
| Heavy Abrasive Material |
90±2 Shore A |
| High Capacity Screening |
95±2 Shore A |
Proper hardness selection helps optimize rod flexibility and service life.
Suitable Materials
Polyurethane declogging rods are highly effective for:
- Wet coal
- Clay
- Iron ore fines
- Gold ore
- Copper ore
- Sticky sand
- Recycled concrete
- Sludge materials
- Damp aggregate
Why Choose HUATAO Polyurethane Declogging Rods?
High-Quality PU Formula
Excellent elasticity and wear resistance for continuous industrial operation.
Customized Production
Custom diameter, hardness, and installation design available.
Strong Anti-Clogging Effect
Maintains stable screening efficiency even under difficult wet conditions.
Compatible with Multiple Screen Types
Suitable for vibrating screens, self-cleaning screens, and flip-flow screens.
Long-Term Cost Savings
Reduces maintenance, downtime, and screen replacement frequency.
RFQ – Information We Need
To recommend the correct polyurethane declogging rods, please provide:
- Vibrating screen type and model
- Screen mesh opening size
- Material being screened
- Moisture content
- Required rod diameter
- Required hardness (if known)
- Installation method
- Operating temperature
- Photos or drawings of current screen deck
